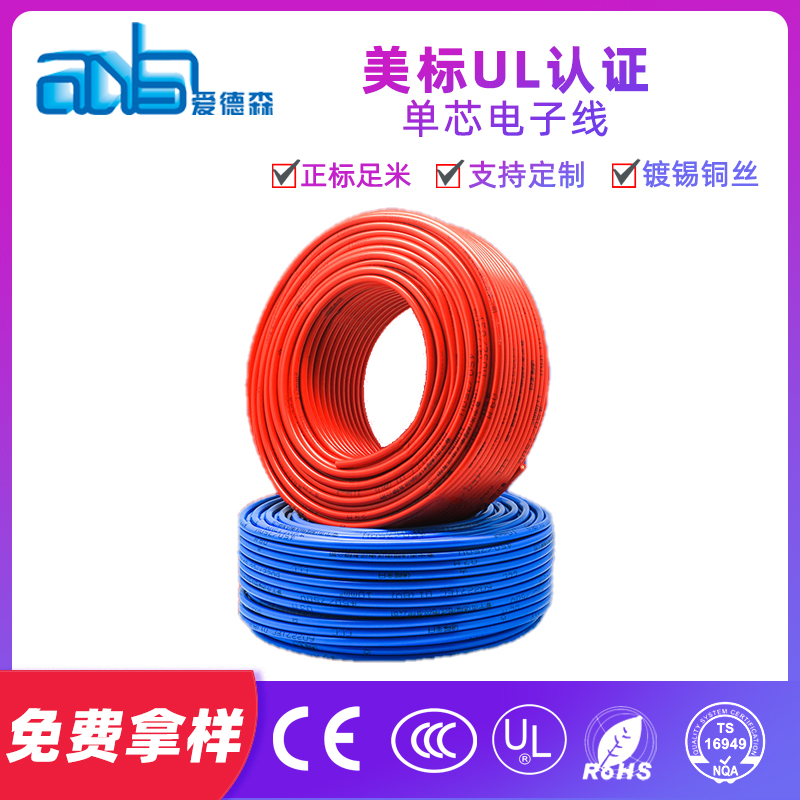

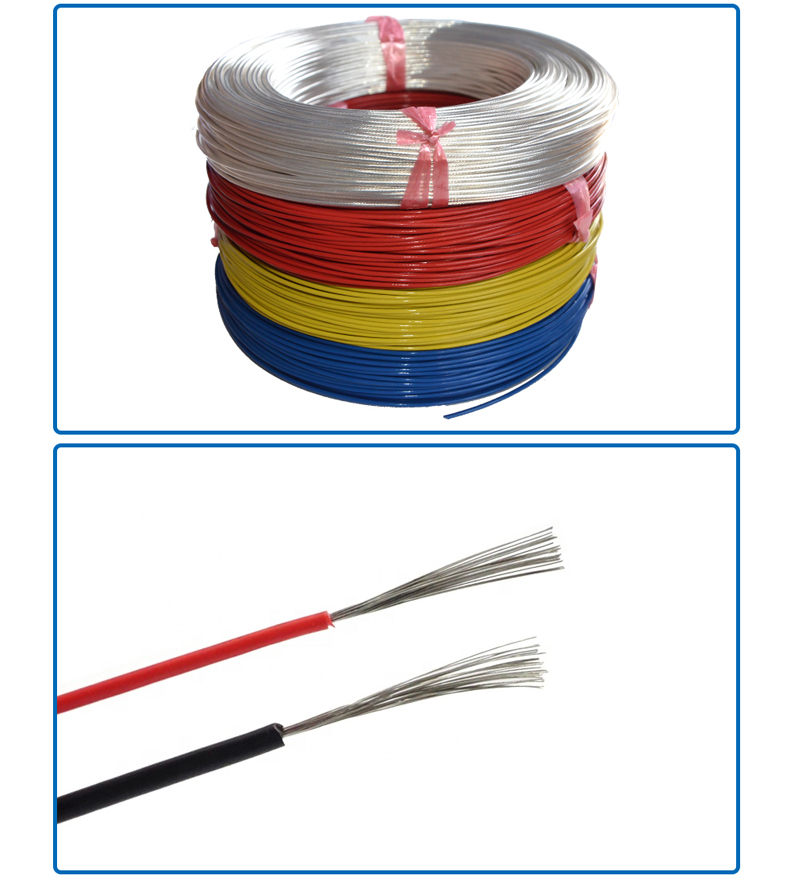

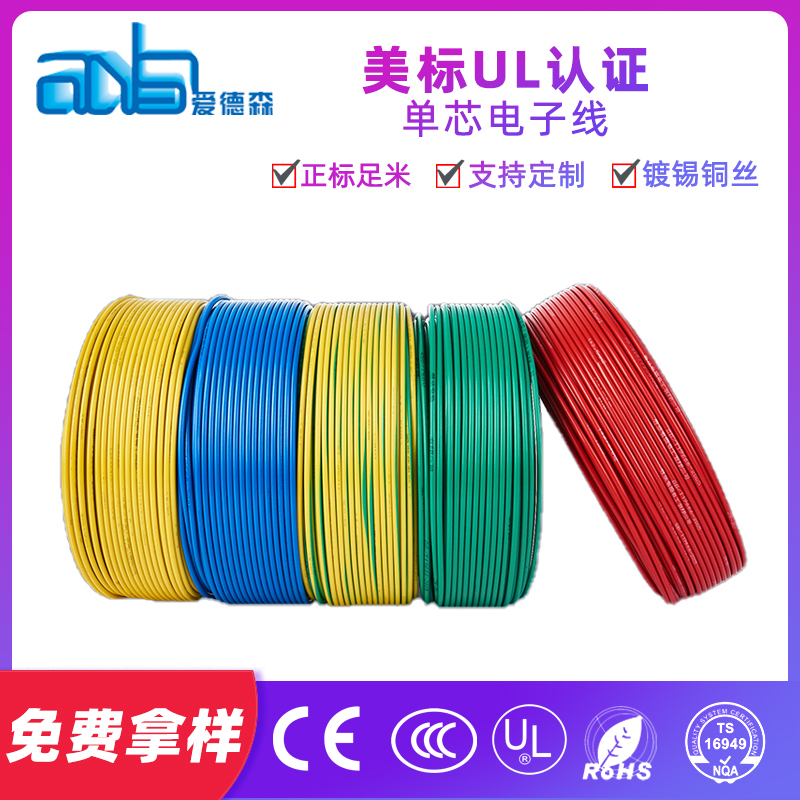

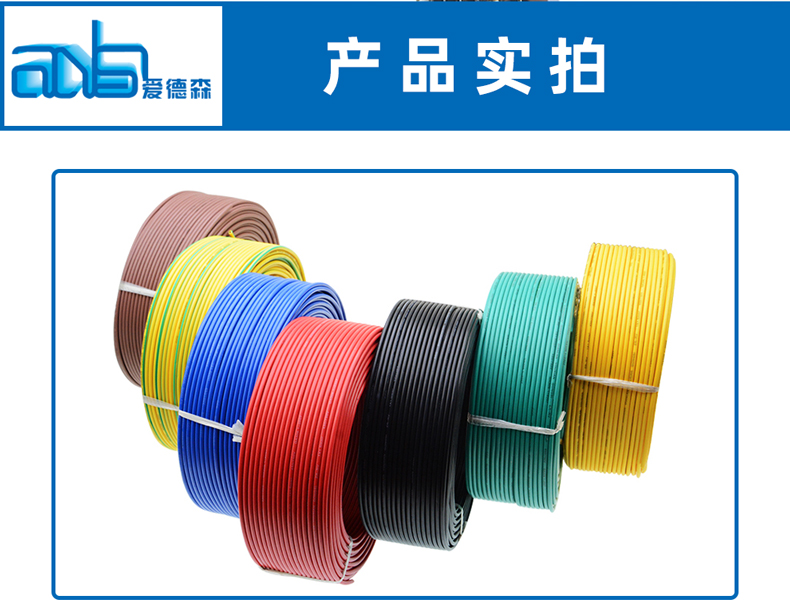

美标UL1032产品特征 1.额定温度:90C 2.额定电压:1000V 3.执行标准:UL758UL1581,CSA C22.2 4.导体使用单根或绞合30AWG-2000kcmil镀锡或裸铜线 5.绝缘采用聚氯乙烯材料 6.通过UL VW-1CSA FT1垂直燃烧
立即咨询UL 型号 | 导体线规(AWG) | 导体结构 conductor | 导体外径(mm) | 绝缘厚度(mm) | 电缆外径(mm) | 最大导体电阻(Ω/kft) | 标准长度 | |
FT/ROLL | METER/ROLL | |||||||
UL1032 | 26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 45.8 | 2000 | 610 |
24 | 11/0.16 | 0.61 | 2.20 | 28.7 | ||||
22 | 17/0.16 | 0.76 | 2.40 | 18.1 | ||||
20 | 21/0.178 | 0.94 | 2.60 | 11.2 | ||||
18 | 16/0.254 | 1.16 | 2.80 | 7.06 | 1000 | 305 | ||
16 | 26/0.254 | 1.49 | 3.10 | 4.45 | ||||
14 | 41/0.254 | 1.87 | 3.50 | 2.73 | ||||
12 | 65/0.254 | 2.36 | 4.00 | 1.72 | ||||
10 | 105/0.254 | 3.00 | 4.65 | 1.08 | ||||
8 | 168/0.254 | 4.29 | 1.14 | 6.70 | 0.6795 | 328 | 100 | |
6 | 266/0.254 | 5.41 | 1.52 | 8.50 | 0.4276 | |||
4 | 412/0.254 | 6.80 | 9.9 | 0.269 | ||||
2 | 665/0.254 | 8.51 | 11.8 | 0.1691 | ||||
1 | 825/0.254 | 9.53 | 2.03 | 13.80 | 0.134 | |||
1/0 | 1045/0.254 | 10.77 | 15.00 | 0.1063 | ||||
2/0 | 1330/0.254 | 12.19 | 16.50 | 0.0843 | 164 | 50 | ||
3/0 | 1650/0.254 | 13.71 | 18.00 | 0.0669 | ||||
4/0 | 2109/0.254 | 15.41 | 19.80 | 0.0525 | ||||
